TimeSync NIC STS2/STS3/STS4
TimeSync NIC STS2/STS3/STS4
5G PTP
概要
本製品は、PTPグランドマスタ機能を、Linux サーバーや5G基地局のDUシステム等に提供します。
Intel E810 NICコントローラ、Microchip / servo PLLを実装し、25G/10G I/F 8ポートはグランドマスタ機能をホストに提供します。
また、外部クロック入力にも対応しています。（1PPS/10MHz）
PTPは1588v2プロファイルをサポートし、SyncE機能を実装する他、Slaveクロックとしても機能します。
O-RAN LL1-C1，C2,C3各要求仕様に対応し、バウンダリクロック、トランスペアレントクロック機能も具備しています。
 |
 |
|
| STS2 8 Ports 10 Gigabit Ethernet Grand Master, Boundary Clock, Slave Clock,PCIe GEN4 TimeSync Server Adapter |
STS3 8 Ports 25/10 Gigabit Ethernet Grand Master, Boundary Clock, Slave Clock,PCIe GEN4 TimeSync Server Adapter |
|
 |
||
| STS4 12 Ports 25/10/1 Gigabit Ethernet Grand Master, Boundary Clock, Slave Clock,PCIe GEN4 TimeSync Server Adapter |
仕様
対応プロファイル ：IEEE1588v2, G.8275.1 Telecom Profile
SyncE /ITU-T G.8262
T-BC/T-TSC（Telecom Boundary Clock, Telecom Slave Clock）
T-TC(Telcom Transparent Clock)
PRTC Primary Reference Time Clock Class B/G.8272
グランドマスタ/時刻同期
- グランドマスタクロック機能（IEEE1588v2、G.8275.1）
- バウンダリクロック機能
- SyncE機能
- 外部10Mhz and 1PPS 出力機能
- OCXO発信器実装
- GNSS受信機実装
LAN,仮想化機能
- SR-IOV (Single Root I/O Virtualization): 最大256
- Partially Programmable Pipeline and Advanced Traffic Steering
- Intel® Ethernet Flow Director – 8000 On-Die perfect match filters
- 1536 queues/Physical Function (PF), >64 RSS/PF and 256 VMDq/PF
グランドマスタ/時刻同期機能
| Profile: IEEE-1588 (2008) ( Annex-J.3 Delay Request-Respond Default Profile) |
Ordinary Clock － Server Ordinary Clock － Client (including slave only OC) Boundary Clock |
|---|---|
| Profile: IEEE-1588 (2008) ( Annex-J.4 Peer-to-Peer) |
Ordinary Clock － Server Ordinary Clock － Client (including slave only OC) Boundary Clock |
| Profile: ITU-T G.8265.1 Telecom Profile: Frequency Synchronization |
Telecom Grandmaster Telecom Slave |
| Profile: ITU-T G.8275.1 PTP Telecom Profile： Phase with Full timing Support: |
Telecom Grandmaster (T-GM) Telecom Boundary Clock (T-BC) Telecom Time Slave Clock (T-TSC) |
| Profile: ITU-T G.8275.2 PTP Telecom Profile： | Telecom Grandmaster (T-GM) |
| Phase with Partial timing Support: | Assisted / Partial Telecom Boundary Clock (T-BC) Assisted / Partial Telecom Time Slave Clock (T-TSC) |
| Device Types: | Ordinary Clock Boundary Clock |
| References Selection: | Default BMCA (Best Master Clock Algorithm) Alternate BMCA based on ITU G.781 – Synchronization layer functions for frequency synchronization based on the physical layer |
| Transport Mappings: | PTP/UDP/IPv4 Annex D PTP/UDP/IPv6 Annex E PTP/Ethernet Annex F |
| NIC TS (Time Stamp) granularity: | 1ns |

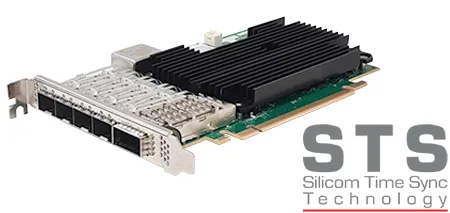

一般技術仕様 STS2/ 8 Ports: P410G8TS81
| Interface Standard: | PCI-Express Base Specification Revision 4.0 (16 GTs) |
|---|---|
| Board Size: | Single slot, Full Height, Half-length(FHHL) add-in card : 167.64 x 111,15(mm) dual slot |
| PCI Express Card Type: | Electrical x8(G.4), Mechanical x16 |
| USB Connector: | SKU Micro-AB connector replaced by 4x1 header |
| PCI Connector: | Gold Finger: x16 Lane |
| On Board Connector Voltage: | PCIe +12V +/-8% |
| Controllers: | Intel E810-CAM2(8x10G) |
| 1588/ SyncE PHY: | 8x10G/1G |
| DPLL: | 1588 / SyncE Microsemi ZL30793 |
| GNSS: | u-blox, ZED-F9T |
| OCXO: | OX-2281-EAE-5000-20M000,20MHz,2ppb,A1 |
| Network ports: | 1xQSFP+, 4xSFP+ |
| Timing Port 1PPS Out: | 1PPS,10%DC TTL 0V-5V Imax 64mA |
| Timing Port 10MHz Out: | 10MHz, TTL 0V-5V,DC50% Imax 64mA |
| Timing Port 1PPS In: | 1PPS,0V-5V/50Ohm 10%DC |
| Timing Port 10MHz In: | 10MHz 0V-5V/50Ohm 40%-60% DC |
| Holder: | Metal Bracket |
| Power Consumption-XR: | Max: 28.35[w] |
| Power Consumption-SR: | Max: 34.8[w] |
| Power Consumption-LR: | Max: 34.8[w] |
| Operating Temperature: | 0°C – 45°C |
| Storage: | -40°C–65°C |
| Regulation: | CE, FCC Class B, ROHS requirements. |
| LEDs: | Turns on link (Green) |
| LEDs location: | Ports 0-3: On Metal Bracket, above 4x SFP+s Ports 4-7: On Metal Bracket, left side of QSFP+ |
QSFP+ 10GbE 技術仕様:
| QSFP (Small Form Factor Pluggable) supports: | SFI interfaces supports 10GBase-R PCS and 10 Gigabit PMA in order to connect with QSFP+ to 10GBase-SR/ LR (MPO) |
|---|---|
| 10GBase-SR: IEEE Standard / Network topology: |
Fiber 10Gigabit Ethernet,10GBASE-SR(850nm LAN PHY) 10.3125GBd MMF Multi Mode Fiber |
| 10GBase-LR: IEEE Standard / Network topology: |
Fiber 10Gigabit Ethernet, 10GBASE-LR (1310nM LAN PHY) 10.3125GBd (SMF) Single-Mode fiber:10000m at 9um |

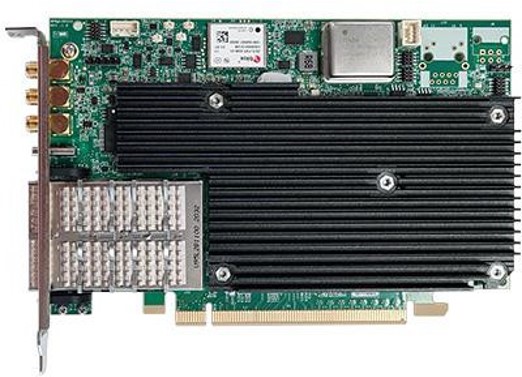

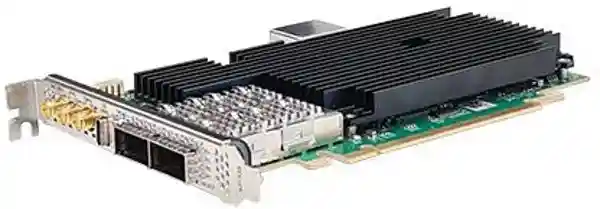

一般技術仕様 STS3/ 8 Ports: P425G8TS81-XR
| Interface Standard: | PCI-Express Base Specification Revision 4.0 (16 GTs) |
|---|---|
| Board Size: | Single slot Standard height add-in Card : 167.64 x 111,15(mm) |
| PCI Express Card Type: | x16 Lane, bifurcation |
| USB Connector: | uUSB |
| Voltage: | +12V +/-8%, +12VAUX |
| PCI Connector: | Gold Finger: x16 Lane |
| Controllers: | 2xIntel E810-CAM1 |
| 1588/ SyncE PHY: | 8x25G |
| OCXO: | OX-2281-EAE-5000-20M000, 2 ppb, A1 |
| DPLL: | 1588 / SyncE Microchip ZL30793, Si5315A-C-GM |
| GNSS: | U-blox, ZED-F9T |
| Network ports | 2xQSFP28/ QSFP |
| Holder: | Metal Bracket |
| Power Consumption | Max: 50[w] |
| Operating Temperature: | 0°C – 45°C |
| Storage: | -40°C–65°C |
| Regulation: | CE, FCC Class B, ROHS requirements. |
| LEDs: | Ports 0-3: 4 LEDs Green Link/Act. Ports 4-7: 4 LEDs Green Link/Act. |
| LEDs location: | Ports 0-3: On Metal Bracket, left to QSFP28 Ports 4-7: On Metal Bracket right to QSFP28 |
| USB HUB | USB2514 – USB hub for 4 downstream ports |
| FTDI USB TO RS232 | USB HS to QUAD UART/MPSSE |
QSFP28 25GbE 技術仕様:
| QSFP28 (Small Form Factor Pluggable) supports: | (x4) SFI interfaces supports 25GBase-R PCS and 25 Gigabit PMA in order to connect with QSFP to 25GBase-SR/ LR (MPO) |
|---|---|
| 25GBase-SR QSFP: IEEE Standard / Network topology: |
Fiber 25Gigabit Ethernet, 25GBASE-SR (850nM LAN PHY) 25.78125GBd MMF Multi-Mode fiber |
| 25GBase-LR QSFP: IEEE Standard / Network topology: |
Fiber 25Gigabit Ethernet, 25GBASE-LR (1310nM LAN PHY) 25.78125GBd (SMF) Single-Mode fiber : 10000m at 9um |
QSFP+/ SFP+ 10GbE 技術仕様:
| QSFP /SFP+ (Small Form Factor Pluggable) supports: | SFI interfaces supports 10GBase-R PCS and 10 Gigabit PMA in order to connect with QSFP to 10GBase-SR/ LR (MPO) |
|---|---|
| 10GBase-SR : IEEE Standard / Network topology: |
Fiber 10Gigabit Ethernet, 10GBASE-SR (850nM LAN PHY) 10.3125GBd MMF Multi-Mode fiber |
| 10GBase-LR IEEE Standard / Network topology: |
Fiber 10Gigabit Ethernet, 10GBASE-LR (1310nM LAN PHY) 10.3125GBd (SMF) Single-Mode fiber: 10000m at 9um |

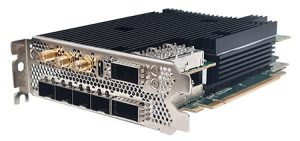

一般技術仕様 STS4/ 12 Ports: P425G410G8TS81
| Interface Standard: | PCI-Express Base Specification Revision 4.0 (16 GTs) |
|---|---|
| Board Size: | Dual slot Standard height add-in card, FHHL: 167.64mm X 111,15 mm(6.6”X 4.376”) dual slot |
| PCI Express Card Type: | x16 Lane, 2x8 bifurcation |
| USB Connector: | PCB4: 4x1 header PCB2: 4x1 header |
| Voltage: | +12V +/-8% |
| PCI Connector: | Gold Finger: x16 Lane |
| Controllers: | Intel E810-CAM2, Intel E810-CAM1 |
| 1588/ SyncE PHY: | 4x25G, 8x10G |
| DPLL: | 1588 / SyncE Microchip ZL30793 |
| GNSS: | U-blox, ZED-F9T |
| Network ports | QSFP28, QSFP+, 4xSFPP |
| Holder: | Metal Bracket |
| Power Consumption | Max:60[w] |
| Operating Temperature: | 0°C – 45°C |
| Air Flow Requirements: | For 45°C recommended: 400 LFM for Hot aisle 300 LFM for Cold Aisle |
| Storage: | -40°C–65°C (-40°F–149°F) |
| Regulation: | CE, FCC Class A, ROHS requirements |
| LEDs: | PCB4: Ports 0-3: 4x Green LEDs, one per port: Turns on for Link, Blinks for Activity Ports 4-7: 4x Green LEDs, one per port: Turns on for Link, Blinks for Activity Ports 8-11: Option A: 4x Green LEDs, one per port: Turns on for Link, Blinks for Activity. Option B: One Green LED for all 4 ports. Turns on for Link, Blinks for Activity. PCB2: Ports 0-3: 4 x 10 Gbps Green LEDs per port: Turn on for Link. Ports 4-7: 4 x 10 Gbps Green LEDs per port: Turn off on for Link. Ports 8-11: Turn off at Product Rev 2.40 (will be corrected on future revision) |
| LEDs location: | Ports 0-3 : On Metal Bracket, above 4 SFP+s Ports 4-7 : On Metal Bracket, right from QSFP+ Ports 8-11: On Metal Bracket, right from QSFP28 |
QSFP28 25GbE 技術仕様:
| QSFP28 (Small Form Factor Pluggable) supports: | (x4) SFI interfaces supports 25GBase-R PCS and 25 Gigabit PMA in order to connect with QSFP to 25GBase-SR(MPO) |
|---|---|
| 25GBase-SR QSFP: IEEE Standard / Network topology: |
Fiber 25Gigabit Ethernet, 25GBASE-SR (850nM LAN PHY) 25.78125GBd MMF Multi-Mode fiber |
QSFP+/ SFP+ 10GbE 技術仕様:
| QSFP /SFP+ (Small Form Factor Pluggable) supports: | SFI interfaces supports 10GBase-R PCS and 10 Gigabit PMA in order to connect with QSFP to 10GBase-SR(MPO) |
|---|---|
| 10GBase-SR : IEEE Standard / Network topology: |
Fiber 10Gigabit Ethernet, 10GBASE-SR (850nM LAN PHY) 10.3125GBd MMF Multi-Mode fiber |
